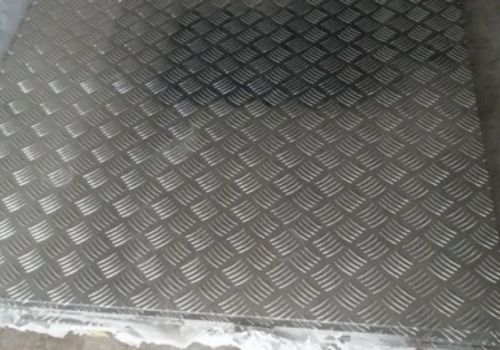

Aluminium 1050 Chequered Plates manufacturer in Australia

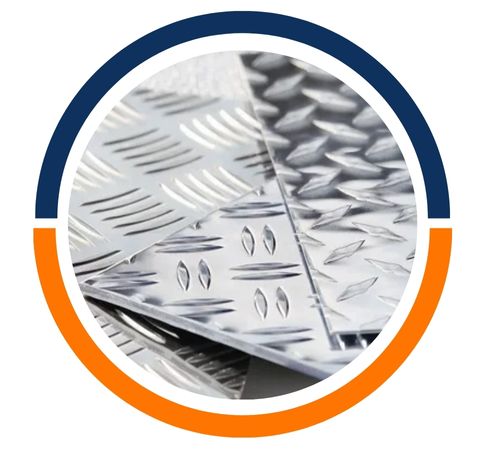

Aluminium Alloy 1050 Chequered Plates Australia, Aluminum 1050 H12 Chequered Plates United kingdom, Aluminium A91050 Chequered Plate Canberra, Aluminium 3.0255 Chequered Plates Melbourne, Aluminium 1050 Chequered Plates Supplier Adelaide, Aluminum 1050-0 Chequered Plates Sydney, Aluminum 1050 H14 Chequered Plates Brisbane, 1050 H16 Aluminium Chequered Plates Australia, ASME SB209 Aluminium Alloy 1050 Five-bar Pattern Chequered Plates Stockist United kingdom, 1050 H18 Aluminium Alloy Chequered Plates Exporter in Canberra, Australia.

Zampa Aluminium is a reputable manufacturer and supplier located in Canberra, Australia, focusing on top-notch aluminium products, including Aluminium 1050 Chequered Plates. With a strong dedication to precision engineering, product durability, and ensuring customer satisfaction, Zampa Aluminium caters to a diverse array of industries with reliable solutions. Their Aluminium 1050 Chequered Plates are celebrated for being lightweight, resistant to corrosion, and featuring a unique raised pattern, making them perfect for both industrial and architectural uses. Whether it’s for flooring, wall cladding, or protective surfaces, Zampa Aluminium consistently delivers excellence and reliability, backed by local expertise and global quality standards.

Aluminium 1050 Chequered Plates are primarily made up of 99.5% pure aluminium, placing them in the 1000 series, which is renowned for its outstanding corrosion resistance and high ductility. This alloy has only trace amounts of iron, silicon, and other elements. It boasts a tensile strength ranging from 60 to 100 MPa and excellent thermal conductivity. While it can’t be heat treated, it can be work-hardened. The chequered pattern not only enhances slip resistance but also keeps the plates lightweight. Additionally, these plates are highly reflective and suitable for anodizing, making them ideal for both structural and decorative purposes.

Aluminum 1050 Chequered Plates

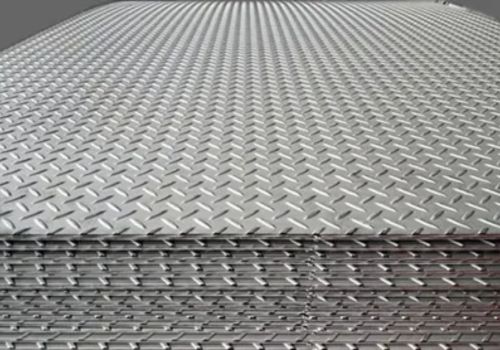

Aluminium Alloy 1050 Chequered Plates

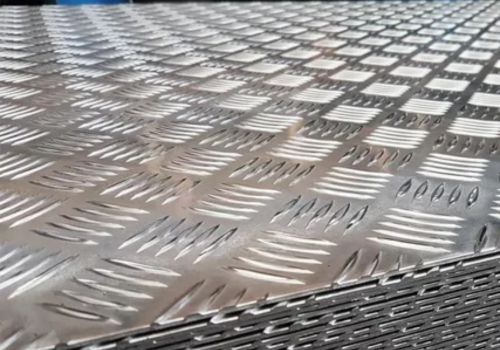

Al Alloy 1050 Chequered Plates

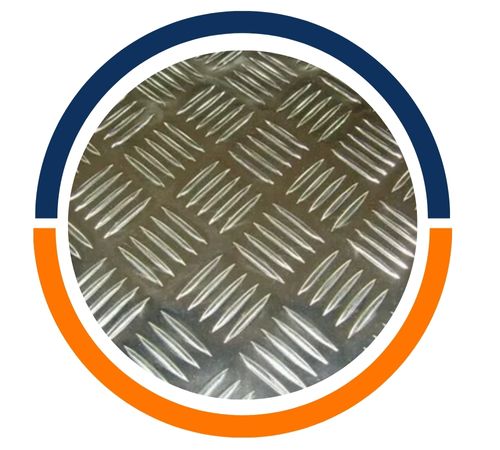

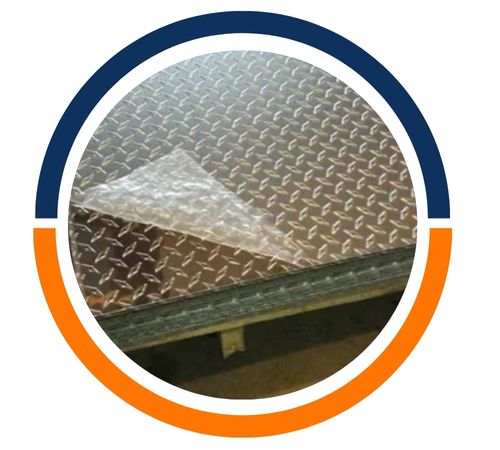

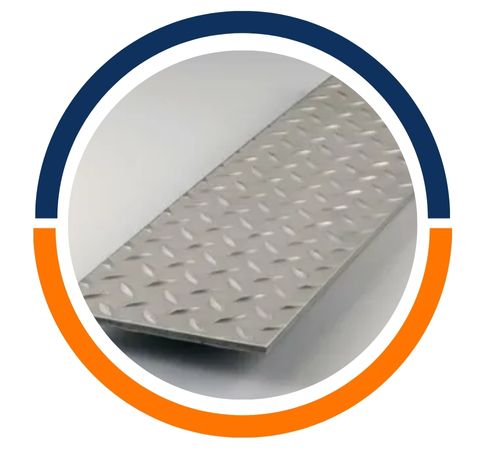

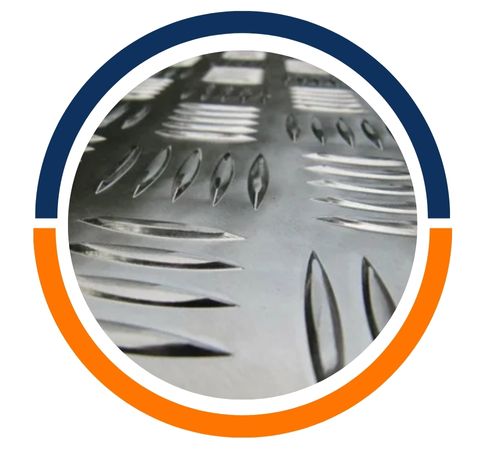

Aluminium 1050 One Bar Pattern Chequered Plates Australia, Aluminium 1050 Hot Rolled Chequered Plates United kingdom, Aluminium 1050 H24 CR Chequered Plates Canberra, BS 1E Two bar Pattern Chequered Plates Melbourne, Aluminium 1050 H19 HR Teardrop Pattern Chequered Plates Adelaide, Aluminium 1050 Chequered Plates Stockist Sydney, Aluminium Alloy 1050 Industrial Chequered Plates Stockiest Brisbane, Aluminum 1050 H22 Export Quality Chequered Plates Suppliers in Canberra, Australia.

Specifications of Aluminium 1050 Chequered Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24

Thickness : 0.2-50

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate

Equivalent Grades of Aluminium 1050 Chequered Plates

European Standard	BS (OLD)	USA (AA)	GERMANY (DIN)	ISO	IS	Canadian
EN AW-1050 A	1E	1050	Al99.5	Al99.5	19500, 19501	1 S

Chemical Composition of Aluminium 1050 Chequered Plates

Alloy (ISS)		Equivalent alloy (A.A)	Copper		Magnesium		Silicon		Iron		*Managanese Others (Total)**			Remarks
Old	New	U.S.A	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Max		Max.		Aluminum 99.0% Min.
1 B	19500	1050	—	0.05	—	—	—	0.30	0.4	—	0.05	0.1			Aluminum 99.5% Min.

Mechanical Properties of Aluminium 1050 Chequered Plates

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 1050 Chequered Plates

Largest Aluminium 1050 Chequered Plates Manufacturer and Exporter in Canberra, Australia

Zampa Aluminium based in Canberra, Australia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Are Custom Sizes Available For Aluminium 1050 Chequered Plates?

Yes, we offer custom sizes for Aluminium 1050 Chequered Plates to meet specific project needs. Our team at Zampa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@zampaaluminium.com

Uses of Aluminium 1050 Chequered Plates

Aluminium 1050 Chequered Plates find extensive use across various sectors due to their corrosion resistance, non-slip surface, and visual appeal. In the construction industry, they are often utilized for flooring, stair treads, ramps, and wall protection panels. In transportation, they act as protective linings in trucks, trailers, and boats. Their lightweight nature makes them a great choice for aerospace applications and architectural facades. They are also employed in food processing plants and chemical industries where hygiene and chemical resistance are paramount. Zampa Aluminium’s plates are versatile enough for both indoor and outdoor use, providing a practical and durable solution even in tough environments.
